How to Set Up Cisco Duo Integration

Configuration Steps

To set up Cisco Duo integration, you'll need to:

  1. Log into Cisco Duo admin panel https://admin.duosecurity.com (https://duo.com/docs/administration)
  2. Configure Generic OIDC Relying Party - Single Sign-On by following  https://duo.com/docs/sso-oidc-generic#create-your-cloud-application-in-duo
    Next, configure“Sign-In Redirect URL” to be https://cloud.jatheon.com/login/duo/authorize

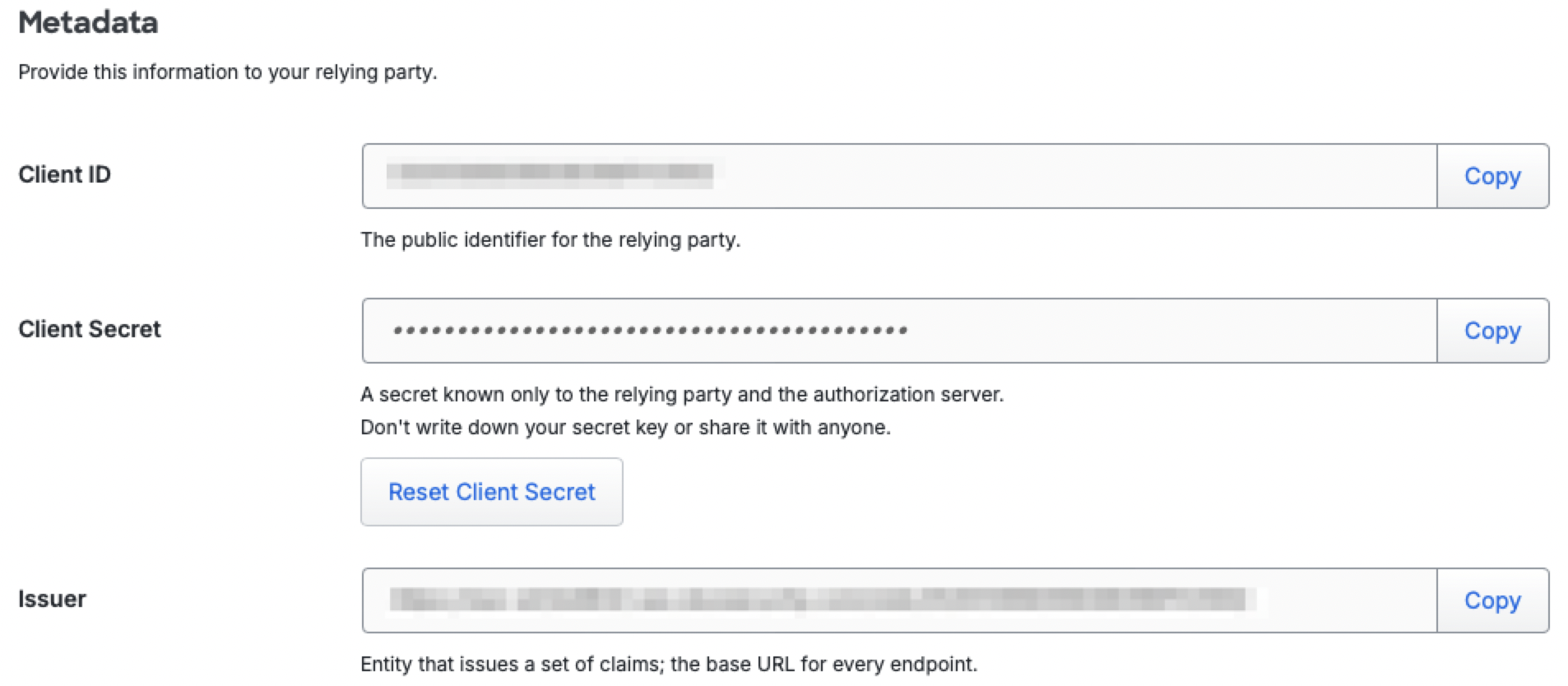

  3. Copy the following values from Metadata section of configured Generic OIDC Relying Party, Client ID and Client Secret and the Issuer

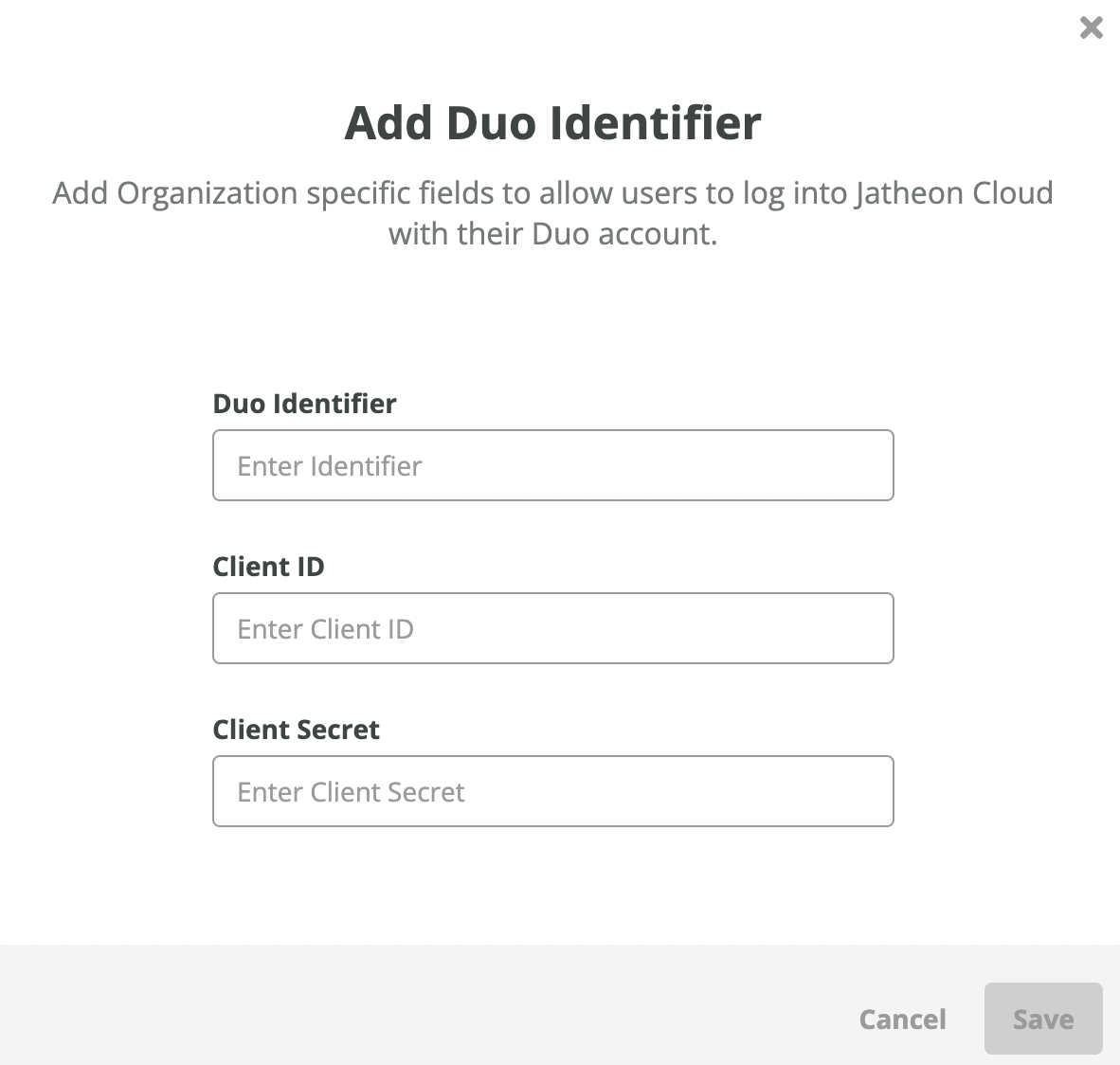

  4. Log in to Jatheon Cloud with your Administrator account, then go to Company Settings and switch to Integrations tab. Click Add Duo Identifier
  • Enter the Issuer value copied from Metadata as Duo Identifier
  • Enter the Client ID and Client secret

SP-initiated SSO

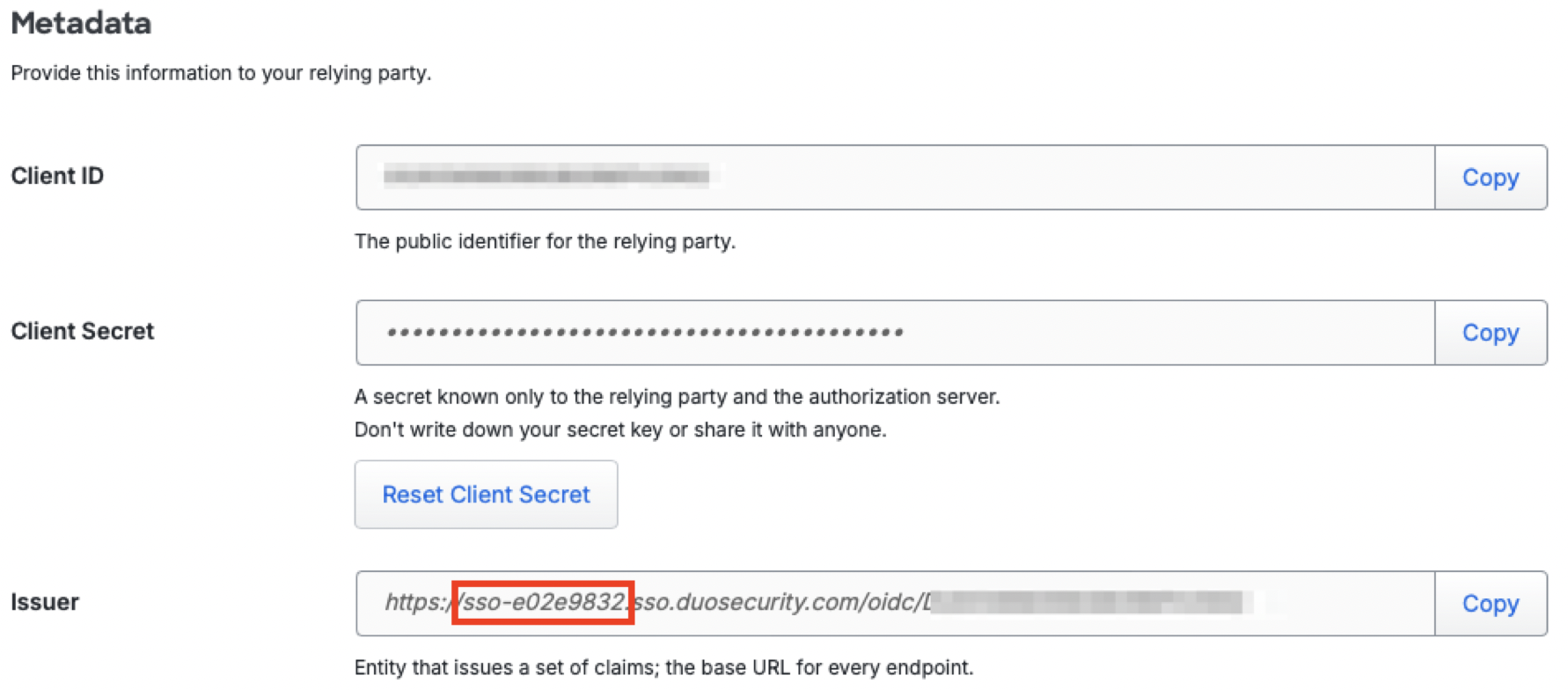

Go to your login URL: https://cloud.jatheon.com/login/duo?name=<your-duo-id> where <your-duo-id> can be found in Issuer value from Metadata

Example
:
If your Issuer URL is https://sso-e02e9832.sso.duosecurity.com/oidc/DI2K5WMGR8GBGR6PH3WQ, <your-duo-id> is sso-e02e9832 and Login URL is https://cloud.jatheon.com/login/okta?name=sso-e02e9832


Keep in mind that user accounts won't be created in Jatheon Cloud until the initial SSO login.
